TAU1308 GNSS RTK module
TAU1308 GNSS module

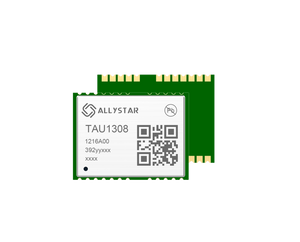

TAU1308 is developed on the base of CYNOSURE III SoC chip. It is a positioning system that combines GPS, BeiDou, GLONASS, Galileo, and QZSS to provide a high precision positioning and navigation solution. With built-in single-band RTK engine, TAU1308 can achieve centimeter-level position accuracy, which makes it suitable for the industrial and consumer fields.
Feature
-
Supports GPS, BDS, GLONASS, Galileo, and QZSS
-
Centimeter-level GNSS positioning
-
Integrated Real Time Kinematics (RTK)
-
Active antenna short circuit protection
-
Configurable peripheral IO pins
-
Low power consumption design
-
Single supply with wide voltage range
Specifications
|
Parameter |
Specification |
|
|
GNSS tracking channels |
40 |
|
|
GNSS reception |
GPS/QZSS: L1C/A BDS: B1I GLONASS: G1 Galileo: E1 |
|
|
Update rate |
Maximum 5 Hz |
|
|
Position accuracy[1] |
GNSS |
1m CEP |
|
RTK |
1.0 cm+1 ppm (H) 3.5 cm+1 ppm (V) |
|
|
D-GNSS |
<1m CEP |
|
|
Velocity & Time accuracy |
GNSS |
0.1 m/s CEP |
|
D-GNSS |
0.05 m/s CEP |
|
|
1PPS |
20 ns |
|
|
Time to First Fix (TTFF) |
Hot start |
1 sec |
|
Cold start |
28 secs |
|
|
Convergence time |
RTK |
< 60 secs |
|
Sensitivity |
Cold start |
-147 dBm |
|
Hot start |
-153 dBm |
|
|
Reacquisition |
-156 dBm |
|
|
Tracking & navigation |
-160 dBm |
|
|
Operating condition |
Main voltage |
2.0V - 3.6V |
|
Digital I/O voltage |
1.8V - 3.6V |
|
|
Backup voltage |
1.8V - 3.6V |
|
|
Power consumption |
Operating (GNSS, L1) |
32 mA @ 3.3V |
|
Standby |
13 uA |
|
|
Interfaces |
UART |
1 |
|
USB[2] |
1 |
|
|
SPI (master/slave) [2] |
1 |
|
|
I2C[2] |
1 |
|
|
Protocol |
RTCM 3.0/3.2/2.3/2.4x[3] NMEA 0183 Protocol Ver. 4.00/4.10 Cynosure GNSS Receiver Protocol |
|
|
Operating limit |
Velocity |
515 m/s |
|
Altitude |
18,000m |
|
|
Operating temperature |
-40°C to +85°C |
|
|
Storage temperature |
-40°C to +85°C |
|
|
Dimensions |
12.2x16.0x2.4 mm |
|
|
Certification |
RoHS, REACH, FCC, CE-RED |
|
* [1] Open sky, single band, demonstrated with a good external LNA
* [2] Supported upon request with special firmware
* [3] RCTM 2.3/2.4 are supported upon request with special firmware.
