NANO RTK Receiver
New arrival！On sale with discount！limit one item per customer！
PRODUCT DESCRIPTION

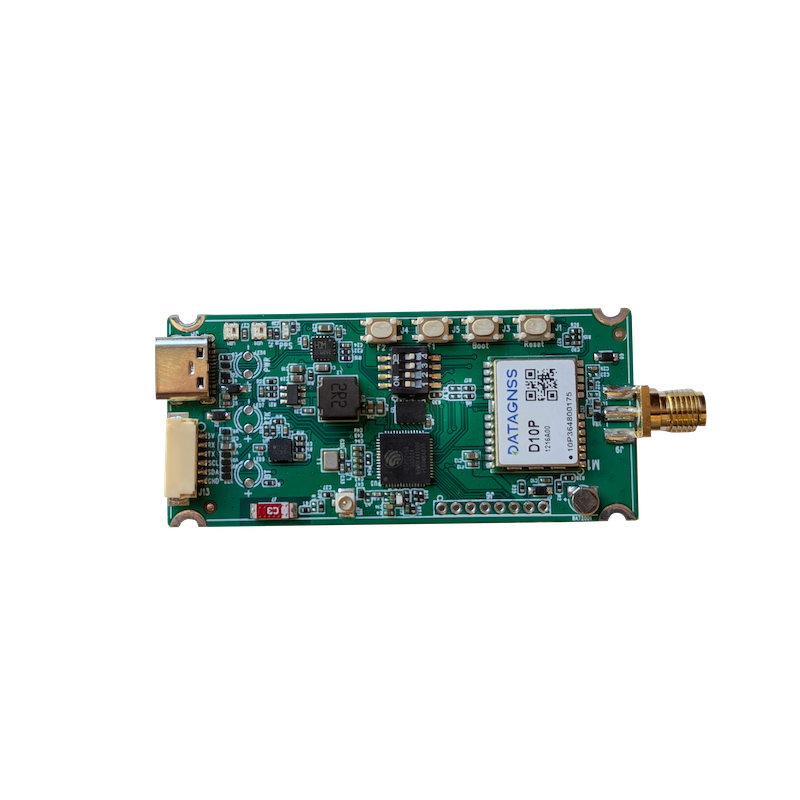

NANO RTK Receiver is the latest high-precision RTK receiver based on Allystar's latest generation GNSS SoC. It can simultaneously support tracking all visible navigation satellites, including GPS, QZSS, BDS, GALILEO, GLONASS, and IRNSS.
NANO RTK Receiver supports power supply and communication through Type C USB or 6P 1.25mm pitch connector.
NANO RTK Receiver supports high-precision helix antenna or high-precision RTK patch antenna.
NANO RTK Receiver supports use with Ardupilot or PX4.
It support full Base and Rover options.
The NANO series also supports Bluetooth communication and outputs commonly used NMEA data through the Bluetooth interface.
Features
- Support GPS, QZSS, BDS, GALILEO, GLONASS, IRNSS
- Support L1+L5/L1+L2
- Support Base and Rover options
- Support up to 5Hz output rate
- Support Ardupilot or Px4
Ordering Info
| SKU | Configuration |
| NANO-DG-95-15 | RTK, Type C, 6P connector, L1/L5 |
| NANO-DG-95-12 | RTK, Type C, 6P connector, L1/L2 |

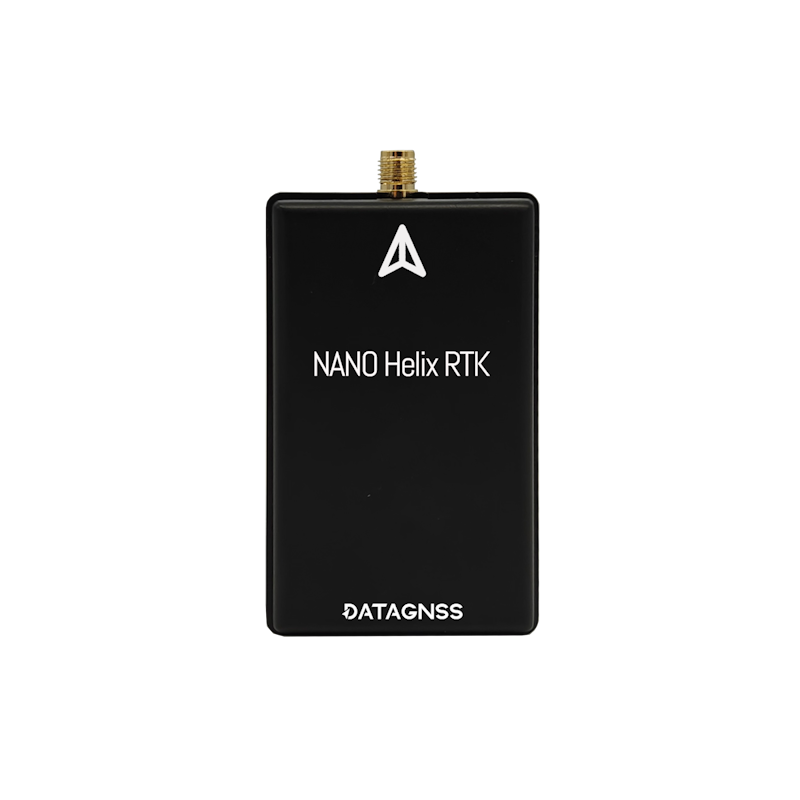

| NANO-HRTK-00 | RTK, Helix Ant.,Type C,6P connector, L1/L5 |
| NANO-BT-00 | RTK, BT, Type C, 6P connector, L1/L5 |
Specifications
| NANO-DG-95-xx | NANO-BT-xx | |
| Channels | 128 hardware channels | 128 hardware channels |
| Frequencies | GPS L1,L2/L5 QZSS L1,L5 BDS B1,B2a/B2I GAL E1,E5a/b GALONASS L1,L2 IRNSS L5 |
GPS L1,L2/L5 QZSS L1,L5 BDS B1,B2a/B2I GAL E1,E5a/b GALONASS L1,L2 IRNSS L5 |
| Interface | USB Type C, default 230400bps 6P 1.25 connector |
USB Type C, default 230400bps 6P 1.25 connector, Bluetooth |
| RTK Initial | <10s | <10s |
| Accuracy | 10mm+1PPM(H) 30mm+1PPM(V) |
10mm+1PPM(H) 30mm+1PPM(V) |
| Update rate | 1/5Hz | 1/5Hz |
| Port | UART*2 | UART*2 |
| Ant. Connector | SMA | SMA |
| Power supply | 4.75~5.25V | 4.75~5.25V |
| Current | ~200mA | ~245mA |
| Dimensions | 65*36mm | 65*36mm |
| Weight | 10g | 10g |
Package list

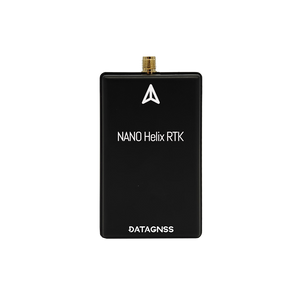

- RTK Receiver with case
- USB Type C cable, 1m
- 6P SH 1.25 to GH 1.25 cable, 20cm
